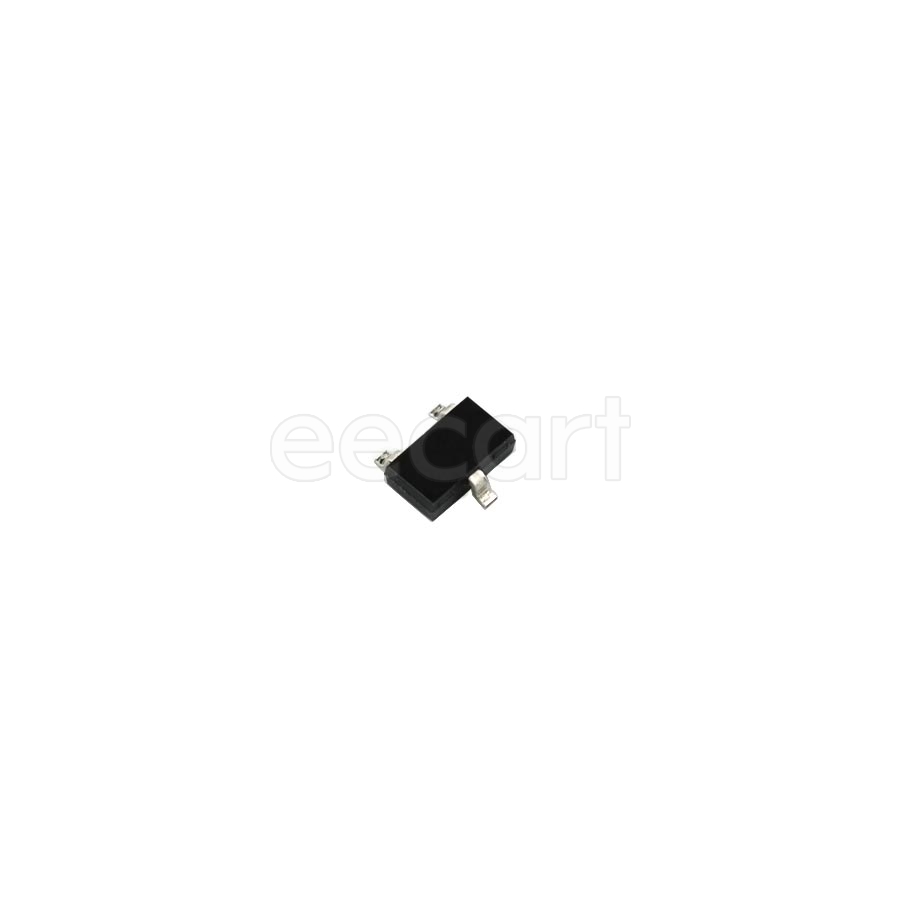

CPH3115-TL-E
Manufacturer:
On Semiconductor
Mfr.Part #:
CPH3115-TL-E
Datasheet:
Description:
BJTs CPH-3 SMD/SMT PNP 900 mW Collector Base Voltage (VCBO):30 V Collector Emitter Voltage (VCEO):-375 mV Emitter Base Voltage (VEBO):5 V
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 3 |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Polarity | PNP |
| Contact Plating | Tin |
| Frequency | 450 MHz |
| Number of Elements | 1 |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Max Power Dissipation | 900 mW |
| Power Dissipation | 900 mW |
| Max Collector Current | 1.5 A |
| Collector Emitter Breakdown Voltage | 30 V |
| Transition Frequency | 450 MHz |
| Element Configuration | Single |
| Collector Emitter Voltage (VCEO) | -375 mV |
| Gain Bandwidth Product | 450 MHz |
| Collector Base Voltage (VCBO) | 30 V |
| Collector Emitter Saturation Voltage | -250 mV |
| Emitter Base Voltage (VEBO) | 5 V |
| hFE Min | 200 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 months ago) |
| Max Cutoff Collector Current | 100 nA |
| Transistor Type | PNP |
Stock: 1207
Distributors
pcbx
pcbxUnit Price$0.45055
Ext.Price$0.45055
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.45055 | $0.45055 |
| 10 | $0.27529 | $2.75290 |
| 50 | $0.22337 | $11.16850 |
| 100 | $0.18124 | $18.12400 |
| 500 | $0.14277 | $71.38500 |
| 1000 | $0.12482 | $124.82000 |
| 3000 | $0.10601 | $318.03000 |
| 5000 | $0.09357 | $467.85000 |
| 10000 | $0.08259 | $825.90000 |
